| MARCA | MSI |
|

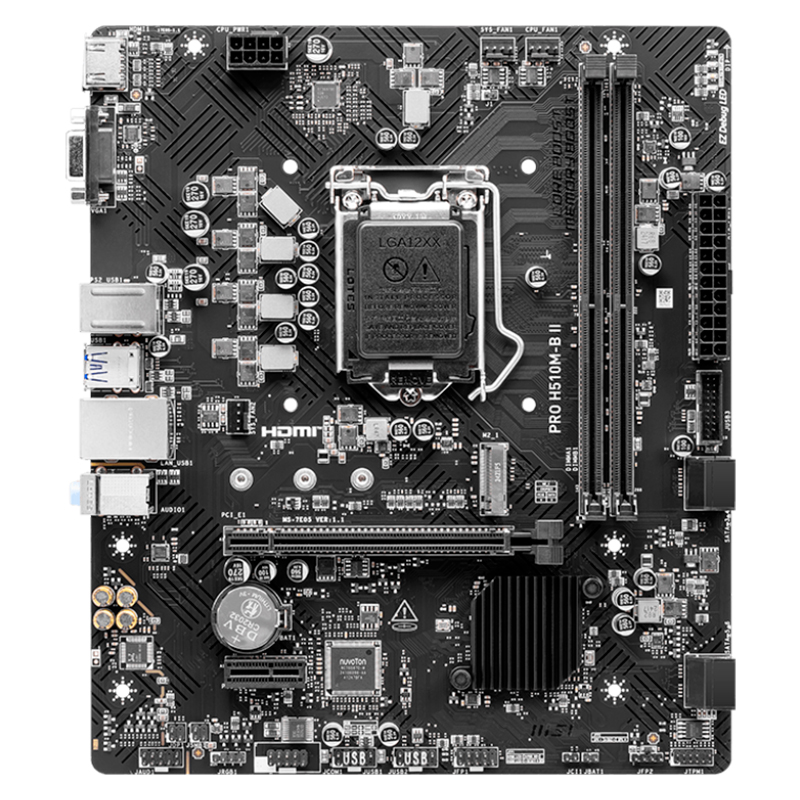

| MODELO | PRO H510M-B II |
|
| CHIPSET | INTEL H470 |
|
| TIPO DE SOCKET | LGA1200 INTEL |
|
| PROCESADORES | INTEL COMPATIBLE | Procesador Core i3 S1200 10XXX-Decima Generacion
Procesador Core i5 S1200 10XXX-Decima Generacion
Procesador Core i7 S1200 10XXX-Decima Generacion
Procesador Core i9 S1200 10XXX-Decima Generacion |
|
| MEMORIAS RAM | COMPATIBLES | Memoria RAM DDR4 4000 MHz PC4-32000
Memoria RAM DDR4 3600 MHz PC4-28800
Memoria RAM DDR4 3200 MHz PC4-25600
Memoria RAM DDR4 3000 MHz PC4-24000
Memoria RAM DDR4 2666 MHz PC4-21300 |
| NUMERO DE SOCKETS DIMM | 2 |
| EXPANSION MAXIMA EN GB | 64 |
| TECNOLOGIA | Intel XMP
Dual Channel |
| TIPO DE RAM | DDR4 |
|
| VIDEO | Revisar caracteristicas del video del procesador. |
|
| SONIDO | TECNOLOGIA | High Definition Audio |
| CHIPSET | Realtek ALC897 Codec |
| CANALES | 7.1 |
|
| CONECTIVIDAD | ETHERNET | CHIPSET | Realtek RTL8111H |
| VELOCIDAD | 10 Mbps
100 Mbps
1000 Mbps |
|
| ALMACENAMIENTO SERIAL ATA | NUMERO DE PUERTOS | 4 |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s |
|
| ALMACENAMIENTO M.2 | NUMERO TOTAL DE SLOTS M.2 KEY M | 1 |
| M.2 CHIPSET | 1 x PCIe 3.0 x4 y SATA tipos | 2242
2260
2280 |
|
| SLOTS DE EXPANSION | PCI Express CPU | PCI Express x16 slot, PCIe 3.0 modo x16 | 1 |
| PCI Express CHIPSET | PCI Express x1 slot, PCIe 3.0 | 1 |
|
| PUERTOS INTERNOS | FRONT PANEL AUDIO HEADER | 1 |
| USB 3.2 GEN 1 HEADER | 2 |
| USB 2.0 HEADER | 4 |
|

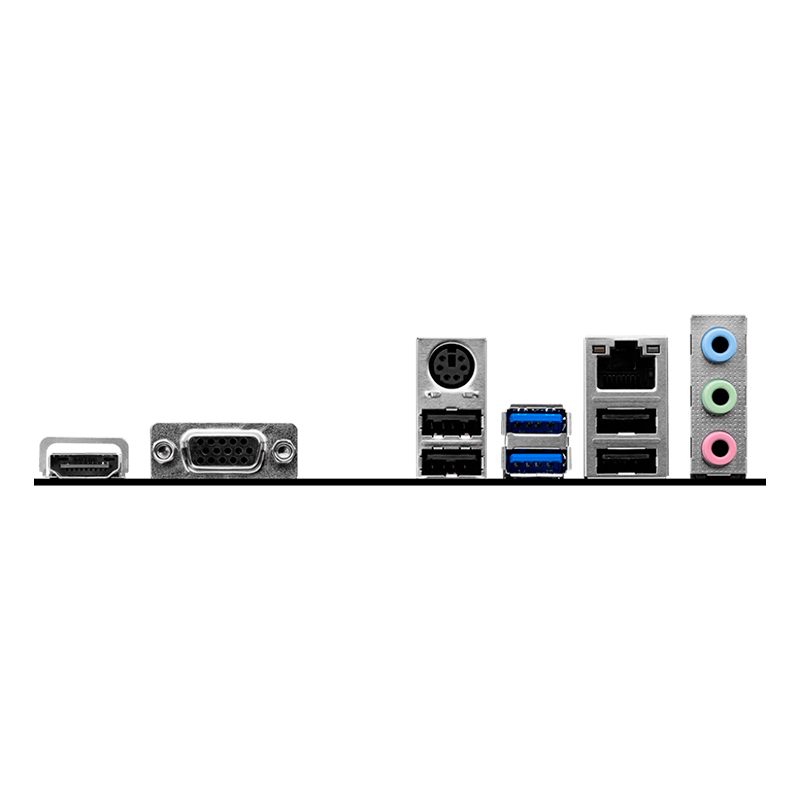

| PUERTOS BACK PANEL | USB 3.2 GEN 1 TIPO-A | 2 |
| USB 2.0 TIPO-A | 4 |
| VGA | 1 |
| HDMI | 1 |
| RJ-45 | 1 |
| AUDIO JACKS | 3 |
| PS/2 COMBO | 1 |
|
| BIOS | AMI BIOS UEFI |
|
| FACTOR DE FORMA Y DIMENSIONES | FACTOR DE FORMA | Micro-ATX |
| DIMENSIONES | 202 mm x 236 mm |
|
| PRESENTACION | CAJA |
|
| CONECTORES FUENTE POWER | 1 x 24-pin ATX Main Power | 1 |
| 1 x 8-pin ATX 12V power | 1 |
|
